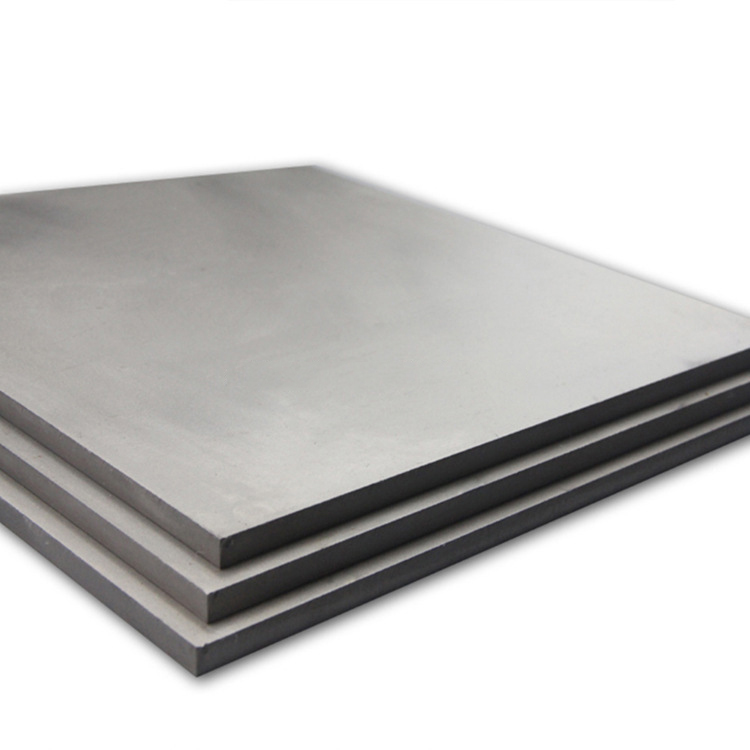

Pure Nickel Plate is one of our top-tier products, designed to meet the toughest demands of industries like aerospace and chemical processing. Made from commercially pure nickel with at least 99.6% purity and a low carbon content (≤0.02%), these plates offer unmatched corrosion resistance, thermal stability, and versatility. Whether you’re building aircraft components or handling caustic chemicals, our pure nickel plates deliver the performance you need to get the job done. Let’s dive into what makes these plates special, explore the industries driving their demand, and show why our company is the best choice for your high-purity nickel needs.
For more details, pls directly contact us.
Our pure nickel plates are crafted from high-purity nickel, meeting strict standards like ASTM B162 and ASME SB162. The low carbon content ensures they remain stable at temperatures above 315°C (600°F), avoiding issues like graphitization that can weaken other materials in high-heat environments. This makes them a go-to for applications where reliability under extreme conditions is critical.
Available in various thicknesses, widths, and finishes, our plates are highly customizable to fit your project’s needs. Their high ductility and low work-hardening rate make them easy to form, weld, and machine, whether you’re creating intricate aerospace parts or robust chemical processing equipment. Plus, their exceptional corrosion resistance to alkalis, reducing acids, and neutral salts ensures long-lasting performance in the harshest environments.
| Grade | Nickel (Ni)+ Cobalt (Co) | Copper (Cu) | Silicon (Si) | Manganese (Mn) | Carbon (C) | Magnesium (Mg) | Sulfur (S) | Phosphorus (P) | Iron (Fe) |
| 99.9% | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 | |
| 99.6% | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
Physical & Mechanical Properties
| Grades | N4/Ni201 | N6/Ni200 |
| Density | 8.9g/cm³ | 8.9g/cm³ |
| Melting Point | 1455°C | 1445-1470℃ |
| Coefficient of Thermal Expansion | 13.0µm/m·°C | 13.3×10⁻⁶/℃ |
| Thermal Conductivity | 10.1W/m·K | 90.7 W/m·K |
| Electrical Resistivity | 0.103×10⁻⁶Ω·/m (at 20℃) | |
| Electrical Conductivity | 14.6% IACS | |
| Tensile Strength | ≥450MPa | ≥450 MPa |
| Yield Strength | ≥200MPa | ≥150 MPa |
| Elongation at Break | ≥40% | ≥40% |
| Hardness | ≤150 |
For more details, pls directly contact us.
Our pure nickel plates shine for several reasons. First, their corrosion resistance is a standout feature. They thrive in alkaline environments—like sodium hydroxide or ammonia processing—where other materials, such as stainless steel 304, might struggle with pitting or cracking. This makes them a top choice for chemical plants and marine applications where durability is non-negotiable.
Second, their high-temperature stability is a major advantage. Unlike some materials that lose strength above 315°C, our plates hold strong, making them ideal for heat exchangers, furnace linings, and nuclear reactor components. Their ability to resist graphitization ensures they maintain structural integrity even in extreme heat.
Finally, their electrical and thermal conductivity makes them a favorite in electronics and energy applications. From battery components in electric vehicles to conductive plates in advanced semiconductors, our nickel plates deliver consistent performance. Their ease of fabrication—thanks to high ductility—also means lower production costs and faster turnaround times for your projects.
Industry Analysis: What’s Driving Demand?
The market for high-purity nickel, including our pure nickel plates, is growing rapidly, driven by global trends in technology, sustainability, and advanced manufacturing. In 2024, the high-purity nickel market was valued at roughly $15 billion, with projections estimating growth to $15.9 billion in 2025 at a CAGR of 6%. While specific figures for pure nickel plates are less common, their critical role in aerospace, chemical processing, and electronics ties them directly to this upward trend.
The aerospace industry is a key driver. With global air travel rebounding and demand for fuel-efficient aircraft rising, pure nickel plates are in high demand for lightweight, corrosion-resistant components like turbine blades and structural parts. Government investments in aerospace, such as NASA’s Artemis program and China’s space initiatives, are further boosting the need for high-performance materials.
The chemical processing sector is another major player. As industries like pharmaceuticals and food production prioritize product purity, our plates are essential for equipment handling caustic substances. The rise of electric vehicles (EVs) is also fueling demand, with pure nickel plates used in battery components due to their electrical conductivity and durability. Policies like the EU’s battery regulation and U.S. clean energy incentives are driving investment in nickel-based materials.
Sustainability trends are reshaping the market too. Recycling initiatives, especially in Europe, are reducing reliance on mined nickel while maintaining high purity standards. This aligns with global pushes for greener supply chains, making our plates a smart choice for eco-conscious manufacturers. However, challenges like fluctuating nickel prices and complex extraction processes highlight the importance of efficient, reliable suppliers like us.
Comparison Table: Pure Nickel Plate vs. Nickel Alloys and Stainless Steel 304
Parameter | Pure Nickel Plate | Nickel Alloys (e.g., Monel) | Stainless Steel 304 |
|---|---|---|---|
Nickel Content | ≥99.6% (low carbon ≤0.02%) | 50-70% (varies by alloy) | ~8-10.5% |
Corrosion Resistance | Superior in alkalis, reducing acids | Excellent, but alloy-specific | Good, but prone to pitting in chlorides |
High-Temperature Stability | Stable above 315°C, no graphitization | High, up to 1000°C in some alloys | Limited to ~870°C |
Electrical Conductivity | High, ideal for electronics | Moderate, depends on alloy | Lower than nickel |
Ductility | High, easy to form and machine | Moderate, varies by alloy | Moderate |
Applications | Aerospace, chemical, electronics | High-temp industrial, marine | General industrial, construction |
Weldability | Excellent, minimal cracking | Good, but may require special techniques | Good, but less in alkaline conditions |
Cost | Higher due to purity | High, varies by alloy | Lower, less specialized |
Our pure nickel plates are incredibly versatile, supporting a wide range of industries and applications:
Aerospace: Used in turbine blades, structural components, and exhaust systems for their lightweight strength and thermal stability.
Chemical Processing: Ideal for reactors, tanks, and piping systems handling caustic alkalis, acids, and neutral salts.
Electronics: Employed in battery plates, conductive components, and semiconductor manufacturing for their high electrical conductivity.
Marine: Resists seawater corrosion, making them perfect for shipbuilding and offshore equipment like pump bodies and valves.
Nuclear Industry: Used in reactor components and shielding for their ability to withstand high temperatures and radiation.
Renewable Energy: Found in heat exchangers and energy storage systems for wind, solar, and hydrogen technologies.
These applications show why our pure nickel plates are a trusted choice for industries that demand precision and durability.
Our Company’s Advantage
When it comes to pure nickel plates, we’re more than just a supplier—we’re a partner dedicated to your success. Our plates are produced using state-of-the-art refining and manufacturing processes, ensuring purity levels of 99.6% or higher and compliance with ASTM and ASME standards. This guarantees consistency, whether you’re ordering a single plate or a large batch for a major project.
Customization is at the core of what we offer. Need a specific thickness, size, or surface finish? We can tailor our plates to your exact specifications, whether for precision aerospace components or heavy-duty chemical equipment. Our advanced fabrication capabilities and rigorous quality control—including mill test certificates and PMI testing—ensure every plate meets your performance standards.
Sustainability is a key focus for us. We’ve optimized our production to minimize waste and energy use, aligning with global trends toward greener manufacturing. Our streamlined supply chain ensures fast delivery times, so you get your materials when you need them, no matter where you are—North America, Asia, Europe, or beyond.
Compared to others in the market, our commitment to innovation sets us apart. We’re constantly exploring ways to enhance our plates, from improving corrosion resistance to optimizing machinability for easier integration into your projects. Our team of experts is always available to provide technical support, helping you choose the right material or troubleshoot challenges. Plus, our global distribution network ensures reliable, on-time delivery for even the most time-sensitive projects.
Looking Forward
The future for pure nickel plates is bright, with demand set to grow as industries like aerospace, EVs, and renewable energy continue to expand. Emerging technologies, like hydrogen energy systems and advanced manufacturing, are opening new opportunities for nickel-based materials. We’re committed to staying ahead of the curve, investing in R&D to ensure our plates meet the evolving needs of our customers.
Our pure nickel plates aren’t just a product—they’re a solution that empowers your projects to succeed in the toughest conditions. Whether you’re building cutting-edge aircraft or handling aggressive chemicals, our plates deliver the reliability and performance you need. Ready to take your applications to the next level with high-purity nickel? Let’s connect and make it happen.
For more details, pls directly contact us.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
