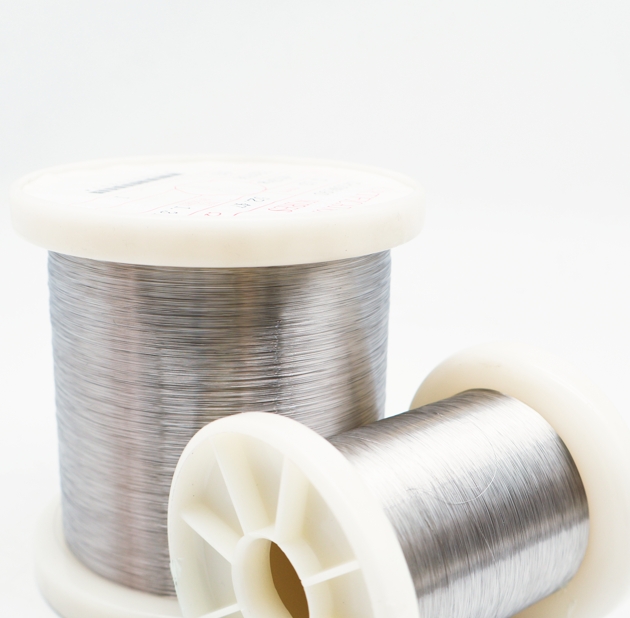

High-Strength 316LVM Stainless Steel Wire for Orthopedic Implants

Our high-strength 316LVM stainless steel wire is a top performer for orthopedic implants, delivering the durability and precision needed to support healing bones and joints. This isn’t just any wire—it’s a vacuum-melted, medical-grade alloy engineered for exceptional performance in the body’s toughest environments. With its superior corrosion resistance and biocompatibility, our 316LVM wire is perfect for crafting wires, cables, and components for plates, screws, and spinal fixation systems. We’ve fine-tuned our production to meet ASTM F138 standards, ensuring every spool creates implants that improve patient outcomes.

What makes our 316LVM stainless steel wire stand out is its carefully crafted composition. Packed with 17-19% chromium, 13-15% nickel, and 2.25-3.5% molybdenum, with carbon below 0.03%, it’s built to resist corrosion while staying flexible. Its tensile strength of 490-690 MPa and elongation of 40-50% allow it to handle the dynamic stresses of orthopedic applications. The yield strength of 190-300 MPa ensures it supports bone stability without fracturing. Our vacuum-melting process minimizes inclusions, ensuring a cleaner material, and we draw wires to diameters as fine as 0.1mm, ideal for precision implants.

For more details, pls directly contact us.

Biocompatibility is a must for orthopedic implants, and our 316LVM wire excels. The high chromium and molybdenum content forms a robust passive oxide layer that resists pitting in the body’s saline or acidic fluids. This layer self-heals if scratched, ensuring implants last for decades—often 20 years or more. Studies show nickel release is minimal, below 0.5 µg/cm²/week, reducing risks of inflammation or allergies, even in sensitive patients. Our electropolishing and passivation treatments create a smooth surface, cutting bacterial adhesion by up to 30%, per clinical data, which lowers infection risks in orthopedic surgeries.

The orthopedic implant market is booming, projected to hit $60 billion by 2030, driven by an aging population and advances in minimally invasive techniques. Our 316LVM stainless steel wire is a key player, offering a cost-effective, high-performance solution for implant manufacturing. Industry trends are leaning toward patient-specific implants, with 3D printing and CAD/CAM enabling custom designs. Our wire’s machinability makes it perfect for these processes, allowing intricate shaping. Sustainability is a big focus too—our wire is 100% recyclable, reducing waste and aligning with healthcare’s green initiatives.

Comparison of Medical Stainless Steel Grades, Materials, and Applications

For more details, pls directly contact us.

Challenges in the industry include corrosion, with 5-7% of implant failures linked to pitting in body fluids. We’re tackling this with research into bioactive coatings, like hydroxyapatite, that boost corrosion resistance and osseointegration by 25%, based on recent studies. Regulatory standards, like FDA and ISO 13485, demand rigorous testing for biocompatibility and fatigue resistance. Our wire exceeds these, with every batch undergoing ultrasonic testing, chemical analysis, and ASTM F138 compliance checks to ensure zero defects. Nickel allergies affect 10-15% of patients, and our 316LVM wire’s vacuum-melted purity minimizes release, ensuring safety for most.

Applications for our 316LVM stainless steel wire are critical in orthopedic implants. It’s perfect for wires and cables in spinal fixation systems, stabilizing vertebrae in scoliosis or degenerative disc treatments. Screws and plates made from our wire provide robust support for fracture repairs in bones like the femur or humerus. In minimally invasive surgeries, our wire’s flexibility supports fine components for precise placement. We’re seeing use in pediatric orthopedics, where lightweight implants are key, and in veterinary surgery, where our wire crafts animal implants, proving its versatility.

Comparing ourselves to the market, our 316LVM stainless steel wire stands out for its quality and customization. We source the purest raw materials, using vacuum-melting to reduce inclusions by up to 300% compared to standard alloys. Our drawing and annealing processes optimize grain structure, boosting fatigue life for implants under constant stress. Unlike generic suppliers, we achieve tolerances as tight as ±0.001 inches, ideal for micro-machined components. Every spool is tested for tensile strength, hardness, and ASTM F138 compliance, guaranteeing reliability in every implant.

Customization is where we really shine. Need a wire with a specific diameter for a spinal cable or a polished finish for smooth screw insertion? We deliver tailored solutions in days, keeping your production on track. Our surface treatments, like electropolishing and passivation, enhance biocompatibility and reduce infection risks by up to 20%. Cost-wise, our 316LVM wire offers premium performance at a lower price than titanium or cobalt-chrome, making advanced implants accessible to more hospitals. Our material experts provide hands-on support, helping you integrate our wire into complex designs, saving you time and R&D costs.

Looking ahead, the orthopedic industry is embracing robotics and AI-driven design, and our 316LVM wire is ready for the future. It’s compatible with additive manufacturing and laser cutting, enabling innovative implant geometries for patient-specific needs. We’re investing in antimicrobial coatings that could reduce infection rates by 15%, addressing a key concern in orthopedic surgeries. With rising healthcare costs, our wire provides a budget-friendly option without compromising quality, helping clinics deliver better care. Its durability—lasting 10-20 years in many cases—reduces revision surgeries, improving patient outcomes and lowering long-term costs.

Comparison Parameters Table

In short, our high-strength 316LVM stainless steel wire is a cornerstone for orthopedic implant innovation. From stabilizing spinal systems to robust fracture plates, it’s built to perform where reliability and biocompatibility matter most. We’re committed to pushing the boundaries, whether through cleaner alloys, smarter finishes, or faster delivery. As the orthopedic field evolves, our wire is at the forefront, enabling manufacturers to create implants that transform lives with confidence.

For more details, pls directly contact us.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

FAQs:

• What is the composition of 316LVM stainless steel?
  It contains iron (60-70%), chromium (17-19%), nickel (13-15%), molybdenum (2.25-3.5%), and carbon (<0.03%), with trace manganese, silicon, and sulfur.

• What are the key mechanical properties of 316LVM stainless steel for orthopedic implants?
  Tensile strength ranges from 490-690 MPa, yield strength from 190-300 MPa, elongation from 40-50%, and hardness around 95 HRB, balancing strength and flexibility.

• How is 316LVM stainless steel wire used in orthopedic implants?
  It’s used for wires, cables, and components in plates, screws, and spinal fixation systems, providing durability and corrosion resistance.

• What makes 316LVM stainless steel corrosion-resistant for orthopedic implants?
  Its high chromium and molybdenum content, enhanced by vacuum melting, forms a robust oxide layer, resisting corrosion in body fluids and sterilization.

• What are current industry trends for 316LVM stainless steel in orthopedic implants?
  Trends include bioactive coatings for better osseointegration, 3D printing for custom implants, and minimally invasive surgical techniques.

• Is 316LVM stainless steel biocompatible for orthopedic implants?
  Yes, it’s highly biocompatible with minimal ion release, optimized by vacuum melting, ideal for long-term implants with low allergy risk.

• What advantages does 316LVM stainless steel have over other materials?
  It’s more cost-effective than titanium, with superior corrosion resistance compared to 304 stainless steel, and easier to machine than cobalt-chrome.

• How does 316LVM stainless steel support sustainability in orthopedic implant manufacturing?
  Its recyclability, long lifespan, and efficient production reduce waste and revision surgeries, aligning with eco-friendly medical trends.
