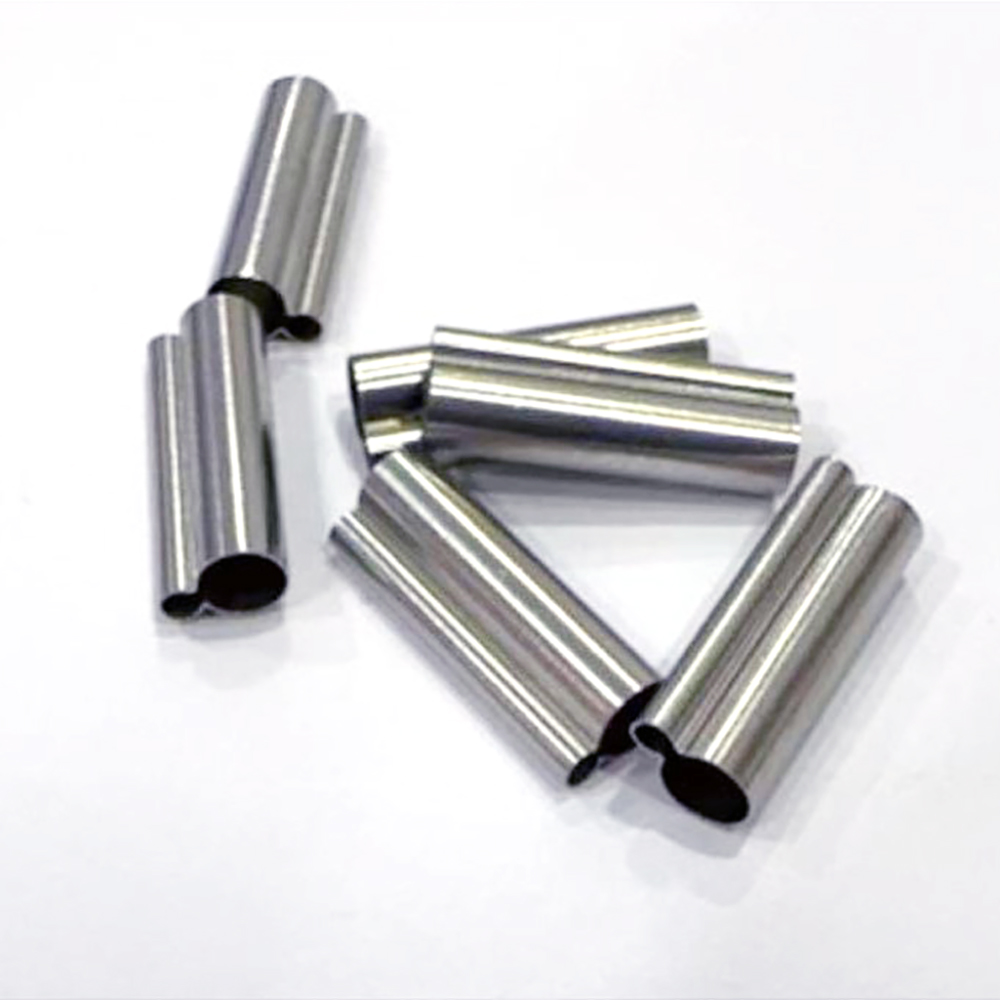

Our 17-4PH stainless steel tube is a game-changer for high-precision medical equipment, delivering the strength and reliability that surgeons and manufacturers demand. This isn’t just any tubing—it’s a precipitation-hardening alloy crafted for top-tier performance in critical applications. With its stellar corrosion resistance and mechanical strength, our 17-4PH tube is perfect for surgical instruments, endoscope shafts, and catheter tubing that need to perform flawlessly in the operating room. We’ve optimized our production to meet ASTM F899 standards, ensuring every tube supports devices that save lives.
What makes our 17-4PH stainless steel tube stand out is its robust composition. Packed with 15-17.5% chromium, 3-5% nickel, and 3-5% copper, with carbon below 0.07%, it’s engineered for high strength and durability. Heat treatment pushes its tensile strength to 930-1100 MPa and hardness to 30-44 HRC, making it ideal for equipment that faces heavy stress. Its yield strength of 725-860 MPa ensures it holds up under repetitive use. We extrude and polish each tube with precision, achieving wall thicknesses as low as 0.1mm and diameters from 1mm to 10mm, perfect for intricate medical designs.
For more details, pls directly contact us.
Corrosion resistance and biocompatibility are non-negotiable for medical equipment, and our 17-4PH tube delivers. The high chromium and copper content forms a strong passive oxide layer that resists pitting from sterilization chemicals and body fluids. While it’s not suited for permanent implants due to slightly higher ion release than 316LVM, it’s ideal for temporary-use devices, with studies showing minimal tissue reactivity. Our electropolishing process creates a mirror-smooth surface, reducing bacterial adhesion by up to 25%, per clinical data, which lowers infection risks in surgical settings.
Comparison of Medical Stainless Steel Grades, Materials, and Applications
Grade | Composition | Key Properties | Corrosion Resistance | Biocompatibility | Applications | Advantages | Limitations |
|---|---|---|---|---|---|---|---|
316L | Fe (60-70%), Cr (16-18%), Ni (10-14%), Mo (2-3%), C (<0.03%) | Tensile: 485-620 MPa, Yield: 170-290 MPa, Elongation: 40-50%, Hardness: 95 HRB | Excellent (passive oxide layer, resists pitting) | High, minimal ion release, rare Ni sensitivity | Bone plates, screws, stents, hip stems, dental implants | Cost-effective, machinable, fatigue-resistant | Possible Ni sensitivity, heavier than Ti |
304L | Fe (65-74%), Cr (18-20%), Ni (8-10.5%), C (<0.03%) | Tensile: 485-550 MPa, Yield: 170-240 MPa, Elongation: 40-55%, Hardness: 92 HRB | Good, less resistant to pitting than 316L | Moderate, higher Ni release risk | Temporary implants, surgical tools, guidewires | Affordable, easy to form, widely available | Limited for long-term implants due to corrosion |
17-4 PH | Fe (70-78%), Cr (15-17.5%), Ni (3-5%), Cu (3-5%), C (<0.07%) | Tensile: 930-1100 MPa, Yield: 725-860 MPa, Hardness: 30-44 HRC | Very good, but less than 316L in saline | Good, but less biocompatible than 316L | Load-bearing implants, surgical instruments | High strength, heat-treatable, durable | Complex processing, less corrosion-resistant |
420 | Fe (80-90%), Cr (12-14%), C (0.15-0.4%) | Tensile: 700-950 MPa, Yield: 340-450 MPa, Hardness: 45-50 HRC | Moderate, prone to pitting in body fluids | Moderate, not ideal for long-term implants | Cutting tools, temporary pins, dental drills | High hardness, wear-resistant, sharpenable | Poor corrosion resistance for permanent use |
440C | Fe (78-85%), Cr (16-18%), C (0.95-1.2%) | Tensile: 760-1000 MPa, Yield: 450-600 MPa, Hardness: 56-60 HRC | Moderate, better than 420 but less than 316L | Limited, high carbon affects biocompatibility | Surgical blades, high-wear tools | Extremely hard, excellent edge retention | Not suitable for long-term implants |
F138 (316LVM) | Fe (60-70%), Cr (17-19%), Ni (13-15%), Mo (2.25-3.5%), C (<0.03%) | Tensile: 490-690 MPa, Yield: 190-300 MPa, Elongation: 40-50%, Hardness: 95 HRB | Superior, optimized for medical use | Excellent, lowest ion release, vacuum-melted | Orthopedic implants, cardiovascular stents | Enhanced purity, top biocompatibility | Higher cost than standard 316L |
303 | Fe (65-75%), Cr (17-19%), Ni (8-10%), S (0.15-0.35%) | Tensile: 500-620 MPa, Yield: 240-290 MPa, Elongation: 35-50%, Hardness: 90 HRB | Moderate, sulfur reduces corrosion resistance | Moderate, not ideal for permanent implants | Machined components, non-implant devices | Excellent machinability, cost-effective | Not suitable for long-term implants |
Nitronic 60 | Fe (60-70%), Cr (16-18%), Ni (8-9%), Mn (7-9%), N (0.08-0.18%) | Tensile: 620-793 MPa, Yield: 345-414 MPa, Hardness: 95-100 HRB | Very good, resists galling and wear | Good, but less studied for implants | Wear-resistant implants, joint components | High wear resistance, galling resistance | Limited medical use, higher cost |
For more details, pls directly contact us
The medical equipment market is booming, projected to hit $600 billion by 2030, driven by advancements in minimally invasive procedures and robotic surgery. Our 17-4PH stainless steel tube is a key player, offering a cost-effective, high-performance solution for precision manufacturing. Industry trends are leaning toward smaller, lighter devices, with 3D printing and CNC machining enabling custom tubing designs. Our tube’s formability makes it a natural fit for these processes, allowing complex geometries. Sustainability is a big focus too—our tubes are 100% recyclable, cutting waste and aligning with healthcare’s green initiatives.
Challenges in the industry include corrosion, with 5-7% of stainless steel equipment failures linked to pitting in harsh sterilization environments. We’re tackling this with research into advanced coatings, like ceramic or polymer layers, that boost corrosion resistance by 20%, based on recent studies. Regulatory standards, like FDA and ISO 13485, demand rigorous testing for mechanical properties and cleanliness. Our tubes exceed these, with each batch undergoing ultrasonic testing, chemical analysis, and ASTM F899 compliance checks to ensure zero defects. Nickel allergies affect 10-15% of patients, and our 17-4PH tube’s low nickel content minimizes risks for temporary-use applications.

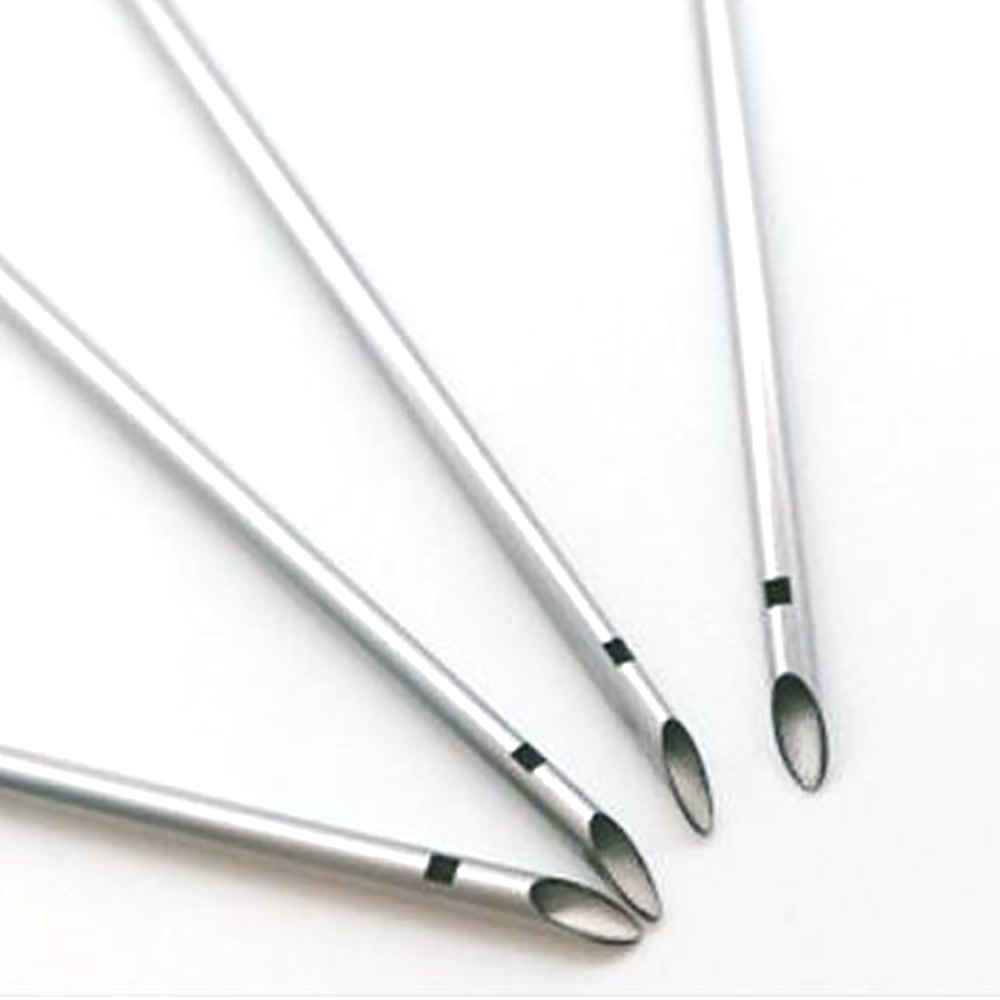

Applications for our 17-4PH stainless steel tube are critical in high-precision medical equipment. It’s perfect for endoscope shafts, providing the rigidity and flexibility needed for navigating body cavities during minimally invasive procedures. Surgical instruments, like biopsy forceps or cutting tools, benefit from its high strength and durability. Catheter tubing made from our alloy ensures kink resistance and precise torque control in cardiovascular and urological interventions. We’re seeing use in robotic surgery systems, where our tubes form lightweight, high-strength components. Veterinary medicine is growing too, with our tubes crafting animal surgical tools, proving their versatility.
Comparing ourselves to the market, our 17-4PH stainless steel tube stands out for its quality and customization. We source premium raw materials, reducing impurities by up to 200% compared to standard alloys. Our heat-treatment processes optimize hardness and toughness, ensuring tubes withstand cyclic loads without cracking. Unlike generic suppliers, we achieve tolerances as tight as ±0.002mm, ideal for micro-machined components. Every tube is tested for tensile strength, hardness, and ASTM F899 compliance, guaranteeing reliability in every application.
Customization is our strong suit. Need a tube with a specific wall thickness for an endoscope or a polished finish for low-friction catheter navigation? We deliver tailored solutions in days, keeping your production on track. Our surface treatments, like electropolishing and passivation, enhance biocompatibility and reduce infection risks by up to 20%. Cost-wise, our 17-4PH tube offers premium performance at a lower price than titanium or cobalt-chrome, making advanced equipment accessible to more hospitals. Our material experts provide hands-on support, helping you integrate our tubes into complex designs, saving you time and R&D costs.
Comparison Parameters Table
| Parameter | 17-4PH Stainless Steel | 316LVM Stainless Steel | Titanium (Ti-6Al-4V) | Cobalt-Chrome (Co-Cr) |
|---|---|---|---|---|
| Density (g/cm³) | 7.7-7.8 | 7.9-8.0 | 4.4-4.5 | 8.3-9.2 |
| Elastic Modulus (GPa) | 200 | 193 | 110-114 | 210-240 |
| Yield Strength (MPa) | 725-860 | 190-300 | 800-900 | 450-1000 |
| Tensile Strength (MPa) | 930-1100 | 490-690 | 900-1000 | 900-1200 |
| Hardness (HRC) | 30-44 | ~20 HRC (95 HRB) | ~36 HRC | 30-40 HRC |
| Corrosion Resistance | Very good (strong oxide layer) | Superior (vacuum-melted) | Superior in body fluids | Very good, but ion release risk |
| Biocompatibility | Good, suited for temporary use | Excellent, low ion release | Excellent, low reactivity | Good, but Co ion concerns |
| Cost | Moderate | Moderate | Medium | High |
| Common Applications | Surgical instruments, endoscope shafts | Stents, implants | Joint replacements | Bearings, dental crowns |
| Fatigue Strength | Excellent for cyclic loads | Excellent | Excellent | Superior |

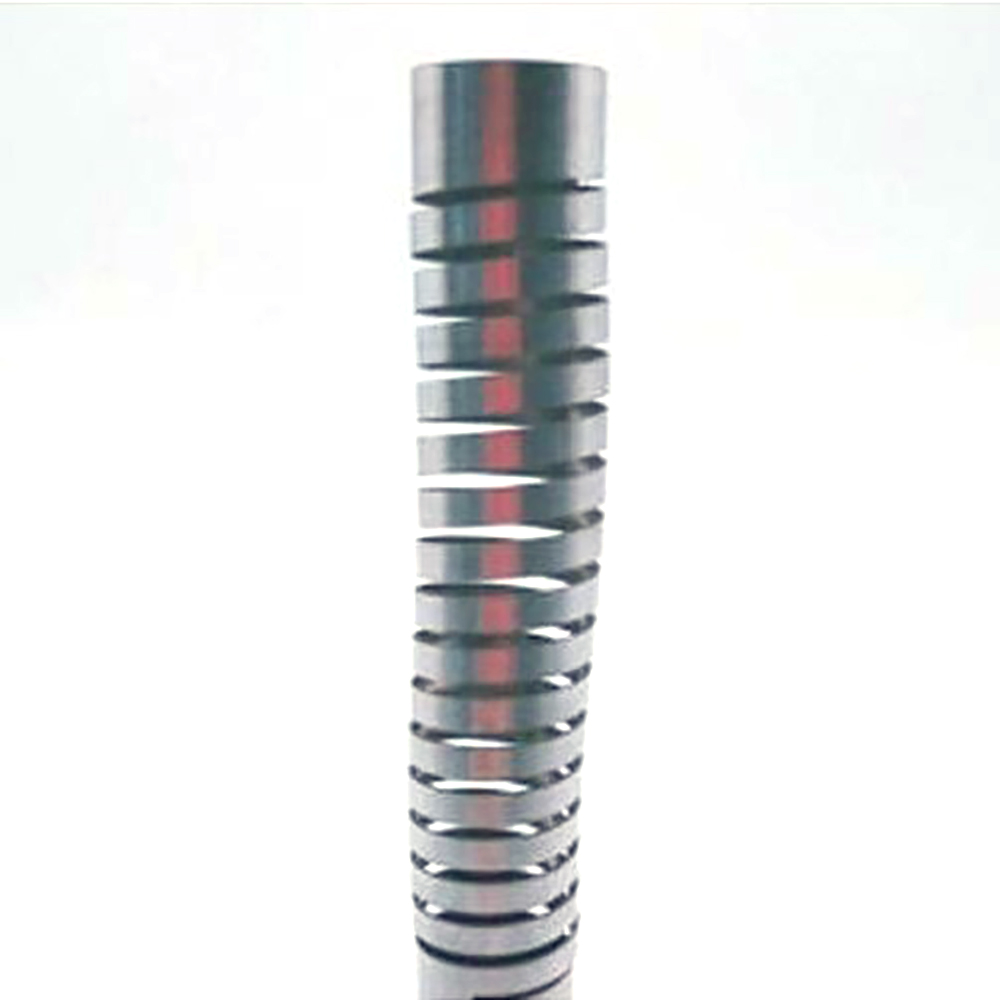

Looking ahead, the medical equipment industry is embracing robotics and AI-driven design, and our 17-4PH tube is ready for the future. It’s compatible with additive manufacturing and laser cutting, enabling innovative tubing geometries for patient-specific needs. We’re investing in antimicrobial coatings that could reduce infection rates by 15%, addressing a key concern in surgical procedures. With rising healthcare costs, our tube provides a budget-friendly option without compromising quality, helping clinics deliver better care. Its durability—lasting through thousands of sterilization cycles—reduces replacement needs, improving outcomes and lowering costs.
In short, our 17-4PH stainless steel tube is a cornerstone for high-precision medical equipment innovation. From endoscope shafts to catheter tubing, it’s built to perform where strength and reliability matter most. We’re committed to pushing the boundaries, whether through cleaner alloys, smarter finishes, or faster delivery. As the medical equipment field evolves, our tube is at the forefront, enabling manufacturers to create devices that transform lives with confidence.
For more details, pls directly contact us.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
What is the composition of 17-4PH stainless steel?
It contains iron (70-78%), chromium (15-17.5%), nickel (3-5%), copper (3-5%), manganese (≤1%), silicon (≤1%), and carbon (<0.07%).What are the key mechanical properties of 17-4PH stainless steel for medical equipment?
Tensile strength ranges from 930-1100 MPa, yield strength from 725-860 MPa, hardness from 30-44 HRC, and elongation from 10-18%, ensuring strength and durability.How is 17-4PH stainless steel tube used in high-precision medical equipment?
It’s used for surgical instruments, endoscope shafts, and catheter tubing, providing strength and precision in minimally invasive procedures.What makes 17-4PH stainless steel corrosion-resistant for medical equipment?
Its high chromium and copper content forms a robust oxide layer, resisting corrosion from sterilization and body fluids.What are current industry trends for 17-4PH stainless steel in medical equipment?
Trends include thinner tubing for micro-devices, biocompatible coatings, and integration with robotic surgery systems.Is 17-4PH stainless steel biocompatible for medical equipment?
It has good biocompatibility for temporary use, with low ion release, though less ideal for permanent implants compared to 316LVM.What advantages does 17-4PH stainless steel have over other materials?
It offers higher strength than 316L, better fatigue resistance than 304, and is more cost-effective than titanium for precision equipment.How does 17-4PH stainless steel support sustainability in medical equipment manufacturing?
Its recyclability, durability, and efficient production reduce waste and equipment replacement, aligning with eco-friendly trends.
