At our company, we're passionate about crafting high-purity stainless steel coiled tubes that serve as biocompatible solutions for medical use. These tubes aren't just metal—they're engineered lifelines in the healthcare world, designed to meet the toughest demands of modern medicine. Let's explore what makes our high-purity stainless steel coiled tubes a standout choice, from their core materials to real-world applications, while touching on industry trends and why we lead the way.
For more details, pls directly contact us.

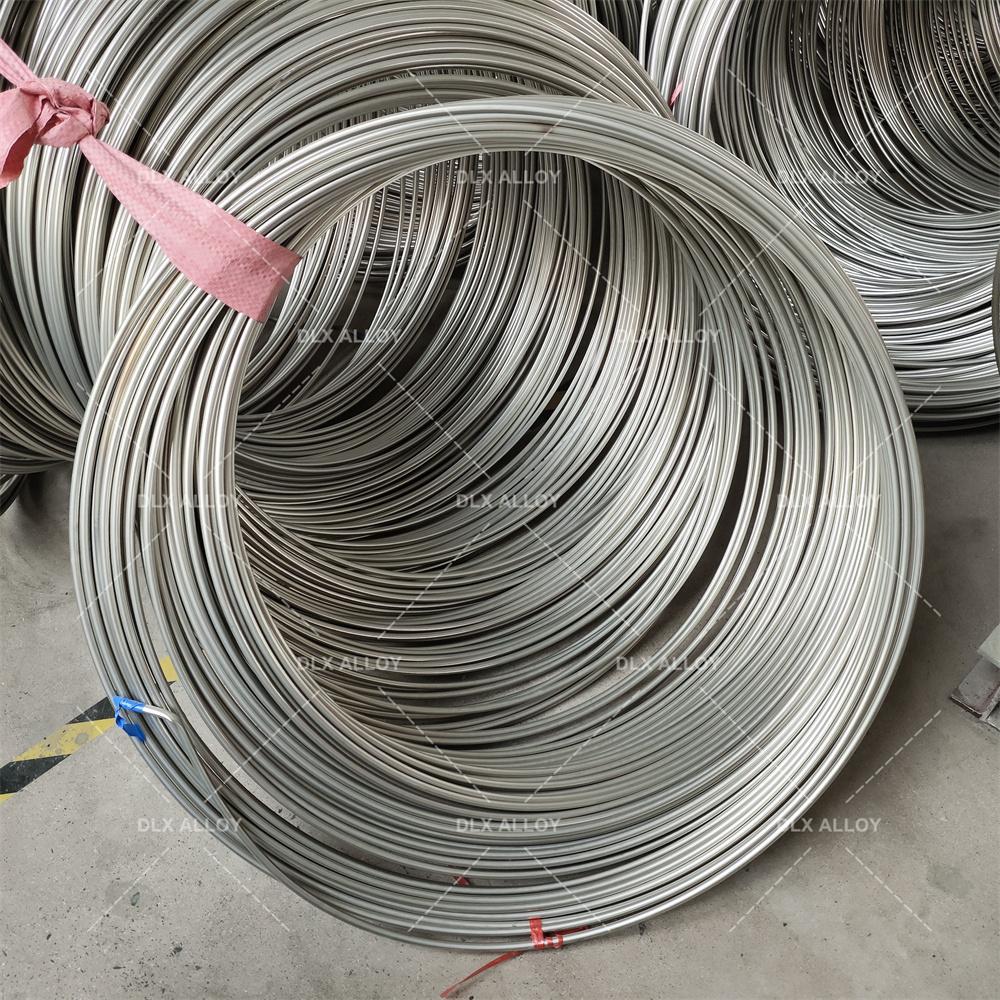

Starting with the product itself, our high-purity stainless steel coiled tubes are made from premium 316L or 304L grades, ensuring ultra-low impurity levels that go beyond standard alloys. We refine the steel to minimize elements like sulfur and phosphorus, which can cause issues in medical environments. This results in tubes with exceptional corrosion resistance, thanks to the high chromium and molybdenum content. Our coiling process allows for precise diameters—ranging from 0.5mm to 10mm—and wall thicknesses as thin as 0.1mm, all while maintaining seamless integrity. What sets them apart is the biocompatible finish: we use advanced electropolishing to create a mirror-like surface that reduces friction and prevents bacterial buildup. These tubes are fully compliant with standards like ASTM A269, ISO 10993, and USP Class VI, making them safe for direct contact with blood, tissues, or pharmaceuticals. Whether you're dealing with fluid transfer or intricate surgical tools, our high-purity stainless steel coiled tubes deliver reliability without compromise.
Grade | Composition | Key Properties | Corrosion Resistance | Biocompatibility | Applications | Advantages | Limitations |
|---|---|---|---|---|---|---|---|
316L | Fe (60-70%), Cr (16-18%), Ni (10-14%), Mo (2-3%), C (<0.03%) | Tensile: 485-620 MPa, Yield: 170-290 MPa, Elongation: 40-50%, Hardness: 95 HRB | Excellent (passive oxide layer, resists pitting) | High, minimal ion release, rare Ni sensitivity | Bone plates, screws, stents, hip stems, dental implants | Cost-effective, machinable, fatigue-resistant | Possible Ni sensitivity, heavier than Ti |
304L | Fe (65-74%), Cr (18-20%), Ni (8-10.5%), C (<0.03%) | Tensile: 485-550 MPa, Yield: 170-240 MPa, Elongation: 40-55%, Hardness: 92 HRB | Good, less resistant to pitting than 316L | Moderate, higher Ni release risk | Temporary implants, surgical tools, guidewires | Affordable, easy to form, widely available | Limited for long-term implants due to corrosion |
17-4 PH | Fe (70-78%), Cr (15-17.5%), Ni (3-5%), Cu (3-5%), C (<0.07%) | Tensile: 930-1100 MPa, Yield: 725-860 MPa, Hardness: 30-44 HRC | Very good, but less than 316L in saline | Good, but less biocompatible than 316L | Load-bearing implants, surgical instruments | High strength, heat-treatable, durable | Complex processing, less corrosion-resistant |
420 | Fe (80-90%), Cr (12-14%), C (0.15-0.4%) | Tensile: 700-950 MPa, Yield: 340-450 MPa, Hardness: 45-50 HRC | Moderate, prone to pitting in body fluids | Moderate, not ideal for long-term implants | Cutting tools, temporary pins, dental drills | High hardness, wear-resistant, sharpenable | Poor corrosion resistance for permanent use |
440C | Fe (78-85%), Cr (16-18%), C (0.95-1.2%) | Tensile: 760-1000 MPa, Yield: 450-600 MPa, Hardness: 56-60 HRC | Moderate, better than 420 but less than 316L | Limited, high carbon affects biocompatibility | Surgical blades, high-wear tools | Extremely hard, excellent edge retention | Not suitable for long-term implants |
F138 (316LVM) | Fe (60-70%), Cr (17-19%), Ni (13-15%), Mo (2.25-3.5%), C (<0.03%) | Tensile: 490-690 MPa, Yield: 190-300 MPa, Elongation: 40-50%, Hardness: 95 HRB | Superior, optimized for medical use | Excellent, lowest ion release, vacuum-melted | Orthopedic implants, cardiovascular stents | Enhanced purity, top biocompatibility | Higher cost than standard 316L |
303 | Fe (65-75%), Cr (17-19%), Ni (8-10%), S (0.15-0.35%) | Tensile: 500-620 MPa, Yield: 240-290 MPa, Elongation: 35-50%, Hardness: 90 HRB | Moderate, sulfur reduces corrosion resistance | Moderate, not ideal for permanent implants | Machined components, non-implant devices | Excellent machinability, cost-effective | Not suitable for long-term implants |
Nitronic 60 | Fe (60-70%), Cr (16-18%), Ni (8-9%), Mn (7-9%), N (0.08-0.18%) | Tensile: 620-793 MPa, Yield: 345-414 MPa, Hardness: 95-100 HRB | Very good, resists galling and wear | Good, but less studied for implants | Wear-resistant implants, joint components | High wear resistance, galling resistance | Limited medical use, higher cost |
For more details, pls directly contact us
In the medical industry, applications for our high-purity stainless steel coiled tubes are vast and growing. Take catheters, for example—they need to be flexible yet strong to navigate veins without kinking or breaking. Our tubes excel here, offering the bend radius required for minimally invasive procedures like angioplasty. In endoscopes, the coiled design allows for compact, maneuverable instruments that provide clear visuals during diagnostics. We've seen them used in IV systems where purity ensures no contaminants leach into medications, crucial for patient safety. For implantable devices, such as stents or pacemakers, the biocompatibility means they integrate seamlessly with the body, reducing rejection risks. Even in dental tools or orthopedic instruments, our tubes provide the durability needed for repeated sterilization. The coiled structure also makes them ideal for portable medical devices, like insulin pumps or wearable monitors, where space and weight are key factors. By focusing on high-purity materials, we help healthcare providers achieve better outcomes, from faster recoveries to lower infection rates.
Shifting to industry analysis, the medical tubing market is on a rapid upward trajectory. With an aging global population and rising chronic diseases, demand for advanced biocompatible solutions is surging. Reports indicate the global medical tubing market could reach over $15 billion by 2030, growing at a CAGR of around 8%. High-purity stainless steel coiled tubes are at the forefront, driven by trends in personalized medicine—think custom implants tailored via 3D printing. Sustainability is another big push; hospitals are seeking eco-friendly materials, and our recyclable stainless steel fits perfectly, with production processes that minimize waste. Technological advancements, like integrating sensors into tubes for real-time data on fluid flow or pressure, are transforming how these products are used. Regulatory pressures from the FDA and EU MDR are tightening, emphasizing traceability and purity, which our high-purity stainless steel coiled tubes already exceed. Challenges like supply chain disruptions from raw material shortages are real, but we're mitigating them through diversified sourcing. Overall, the shift toward outpatient and home-based care is boosting the need for durable, portable tubing solutions.
When it comes to comparing options in the market, our company's high-purity stainless steel coiled tubes have clear advantages that make us the preferred partner for medical innovators. We prioritize in-house R&D, constantly refining our alloys to achieve purity levels that surpass typical offerings—resulting in tubes that last longer and perform better under stress. Our customization capabilities are unmatched; we can adjust coil pitches, lengths, and even add specialized coatings like PTFE for extra lubricity, all tailored to your specific medical application. Quality control is rigorous, with every batch undergoing ultrasonic testing and helium leak detection to ensure zero defects. This attention to detail means fewer failures in the field, saving time and costs for healthcare providers. Plus, our lead times are shorter thanks to automated production lines, so you get what you need when you need it. In a sector where precision saves lives, our commitment to excellence gives us an edge in reliability and innovation.
Delving deeper into applications, our high-purity stainless steel coiled tubes are revolutionizing surgical procedures. In neurosurgery, their fine coiling allows for precise delivery of medications directly to the brain, minimizing trauma. For cardiovascular uses, they form the backbone of guidewires that navigate arteries with ease, thanks to their fatigue-resistant properties. We've optimized them for high-pressure environments, like in dialysis machines, where consistent flow is critical. In research settings, they're used in lab equipment for handling sensitive biologics without contamination. The biocompatible nature also extends to veterinary medicine, where similar tubes aid in animal surgeries. As telemedicine grows, our tubes integrate into remote monitoring devices, enabling data transmission alongside fluid delivery. This versatility stems from our engineering focus, ensuring each tube meets the unique demands of its application.
Comparison Parameters Table for High-Purity vs Standard Stainless Steel Coiled Tubes
| Parameter | High-Purity Stainless Steel Coiled Tubes | Standard Stainless Steel Coiled Tubes |
|---|---|---|
| Purity Level | Ultra-high (impurities <0.01%), low carbon (≤0.03%) | Moderate (impurities 0.1-0.5%), higher carbon (≤0.08%) |
| Corrosion Resistance | Excellent; resists pitting in chlorides and acids due to molybdenum and electropolishing | Good; more prone to corrosion in aggressive environments |
| Biocompatibility | Superior; meets USP Class VI, minimal leachables | Adequate; may require additional coatings for medical use |
| Strength (Tensile) | 515-620 MPa; maintains integrity under flexing | 515 MPa; can weaken with impurities over time |
| Temperature Resistance | Up to 925°C; stable in sterilization processes | Up to 870°C; potential degradation in repeated high-heat cycles |
| Cost | Higher due to refined processing and purity | Lower; suitable for non-critical applications |
| Formability | Excellent; tight coiling without cracking, seamless welding | Good; may have inclusions affecting bendability |
| Applications in Medical Use | Implants, catheters, endoscopes in sensitive procedures | General tubing, non-implantable tools |
| Surface Finish | Electropolished for smoothness and reduced bacterial adhesion | Annealed or pickled; rougher surface |
| Durability | High; withstands repeated use and sterilization with minimal wear | Moderate; higher risk of contamination or failure in long-term use |
Industry trends show a move toward smart materials. We're exploring embeddings like antimicrobial nanoparticles in our high-purity stainless steel coiled tubes to combat hospital-acquired infections, aligning with WHO guidelines. The rise of AI in healthcare is another area—tubes that connect to diagnostic algorithms for predictive maintenance. Economic factors, such as inflation on raw materials, are pushing efficiencies, and our lean manufacturing keeps costs competitive without cutting corners. Post-pandemic, there's heightened focus on supply resilience, and our multiple global facilities ensure uninterrupted delivery.
Our advantages shine in customer support too. We offer comprehensive technical consultations, from design prototyping to regulatory compliance assistance, helping clients navigate complex approvals. This end-to-end service builds trust, unlike more transactional approaches elsewhere. Sustainability-wise, we use renewable energy in forging, reducing our carbon footprint and appealing to eco-aware buyers. In terms of performance, our tubes exhibit lower outgassing in vacuum-sealed medical packaging, preserving sterility longer.
Product-wise, our 316L high-purity stainless steel coiled tubes stand out for marine-grade resistance in saline-heavy uses, while 304L variants offer cost-effective options for less aggressive settings. Both feature annealed tempers for enhanced ductility, perfect for coiling without stress cracks. We provide options like straight-cut ends or flared fittings, ready for immediate assembly.
Looking ahead, trends like biotech integration—using tubes in gene therapy delivery—excite us. We're investing in R&D for bioresorbable hybrids, though pure high-purity stainless remains core for its proven safety. Regulatory evolutions, such as stricter biocompatibility testing, play to our strengths with pre-validated materials.
For more details, pls directly contact us.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
What materials are used in high-purity stainless steel coiled tubes?
High-purity stainless steel coiled tubes are primarily made from austenitic grades like 316L or 304L, with ultra-low carbon content (≤0.03%), high chromium (16-18%), nickel (10-14%), and molybdenum (2-3%) for superior purity and corrosion resistance.
What are the key applications of high-purity stainless steel coiled tubes in medical use?
They are used in catheters, endoscopes, IV delivery systems, surgical instruments, and implantable devices due to their biocompatibility, flexibility, and ability to maintain sterility.
How do high-purity stainless steel coiled tubes ensure biocompatibility?
They meet ISO 10993 and USP Class VI standards, with electropolished surfaces that minimize leachables, reduce bacterial adhesion, and prevent allergic reactions in contact with human tissues.
What industry trends are influencing high-purity stainless steel coiled tubes?
Trends include growing demand for minimally invasive surgeries, advancements in personalized medicine, adoption of sustainable manufacturing, and integration with smart medical devices for real-time monitoring.
What maintenance is needed for high-purity stainless steel coiled tubes in medical settings?
Regular sterilization via autoclaving or ethylene oxide, cleaning with biocompatible solvents, and visual inspections for surface integrity to ensure long-term performance and hygiene.
How do environmental factors impact high-purity stainless steel coiled tubes?
They resist harsh conditions like saline exposure, high humidity, and chemical disinfectants, with high-purity alloys preventing pitting in chloride-rich hospital environments.
What advantages do high-purity stainless steel coiled tubes offer over standard ones?
Superior purity reduces impurities, enhances corrosion resistance, improves weldability, and ensures better biocompatibility, leading to safer and more reliable medical applications.
What future trends might affect high-purity stainless steel coiled tubes in the medical industry?
Emerging trends involve nanotechnology for antimicrobial coatings, increased use in telemedicine tools, and eco-friendly production methods to align with global sustainability goals.
